Connect to your computer

1. Connect the DTK168E to a computer or Android device using one of the methods illustrated in the table below, depending the ports you have on your computer.

Port(s) on your computer	Cable(s) needed to connect to your computer
USB-C DisplayPort™ Alt mode (supports video output)	USB-C to C cable Important: If the power status LED is blinking quickly (or if nothing displays on the screen) after completing the previous step, complete step B to provide additional power to your Wacom device. See step 2.
USB-C port (does not support video output) HDMI port	USB-C to C cable Mini HDMI to HDMI cable See step 2.

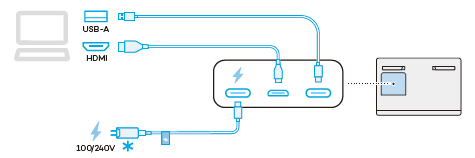

USB-A port HDMI port	USB-C to A cable Mini HDMI to HDMI cable See step 2.



2. Attach the plug plate to the Power adapter and slide it down until you hear a click. Then attach the Power cable to the Power adapter.


Power adapters vary based on region.

3. Attach one end of the the Power cable to the Adapter and the other end to the USB-C power port on your Wacom device. Then plug your Wacom device into a power source.

4. Press the power button to turn your Wacom device on.

5. Follow the instructions on the Install the Wacom driver page.
