Features of your Wacom Cintiq Pro 27

Features of your Wacom Cintiq Pro 27

Topics on this page

Illustrated Guide

Illustration of the front of the Wacom Cintiq Pro 27 showing the location of the Status LED and Kensington Security Slot referenced in the table
IllustrationFeature
Power LED icon showing a central light symbol with rays around it Status LED
Kensington Security Slot

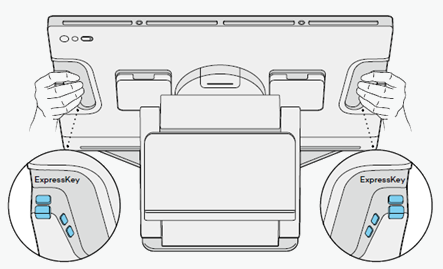

Illustration of the back of the Wacom Cintiq Pro 27 showing the location of controls, attachment areas, ExpressKeys, and VESA mounting holes referenced in the table Illustration highlighting the recessed ExpressKeys and connection ports on the back of the Wacom Cintiq Pro 27
IllustrationFeature
Power button
Built-in display settings button
On/off slider for touch input
Accessory attachment
VESA VESA 100mm x 100mm mounting holes
ExpressKey Eight ergonomically located, recessed hand-grip ExpressKeys (pictured in both images).
USB-C DisplayPort™ Alt mode
(supports graphics input)
USB-A port
Power connection
Mini DisplayPort
HDMI Port
USB-C Port
(does not support graphics)

Feature descriptions

Illustration Feature Description
Status LED This light indicates the power state of your Cintiq Pro and whether a pen is in contact with it. The light is:
  • Blue when powered on with no pen in use.
  • Orange when the pen display is in standby.
  • White when a compatible pen is in contact with the display.
  • Off when the pen display is off.
Kensington Security Slot The Kensington Sercurity Slot can be used to attach a locking cable to secure your pen display to a specific location, like your desk.
Power button Press the power button to turn the device on and off.
Built-in display button You can use the Cintiq Pro's built-in display controls to adjust a variety of display settings.
Important: The Cintiq Pro's display settings are optimized out of the box. Customizing these built-in display settings is an advanced feature.
Touch input An On/Off slider helps you quickly enable or disable the touch features.
Accessory attachment Use the accessory attachment to connect the Pro Pen 3 Tray, which can be attached on either side, or to the top of your pen display to store your pen when it is not in use. The Pro Pen 3 Tray contains extra pen nib storage.
VESA Use the VESA 100mm x 100mm mounting holes to attach the Wacom Cintiq Pro 27 Stand (available from the Wacom eStore) or an optional, third-party stand or arm for additional control over your Cintiq Pro's angle and position.
ExpressKey Use the eight customizable ExpressKeys to activate time-saving actions.
USB-C DisplayPort™ Alt mode Use this port to connect to your computer if your computer has a USB-C DisplayPort that supports video output.
Tip: If your computer does not have a USB-C DisplayPort that supports graphics, you can use this port to connect a mouse or keyboard instead.
USB-A port Use this port to connect a keyboard, mouse, etc.
Power connection Use this port to connect the power adapter to the Cintiq Pro.
Mini DisplayPort Use this port if your computer does not have a USB-C port that supports video output, but has DisplayPort.
HDMI port: Use this port if your computer does not have a USB-C port that supports video output, but has an HDMI port.
USB-C port Use this port if your computer's USB-C port does not support video output and your computer has a DisplayPort or HDMI port.
Tip: See Connect to your computer for detailed information on how to connect the Cintiq Pro to your computer.
